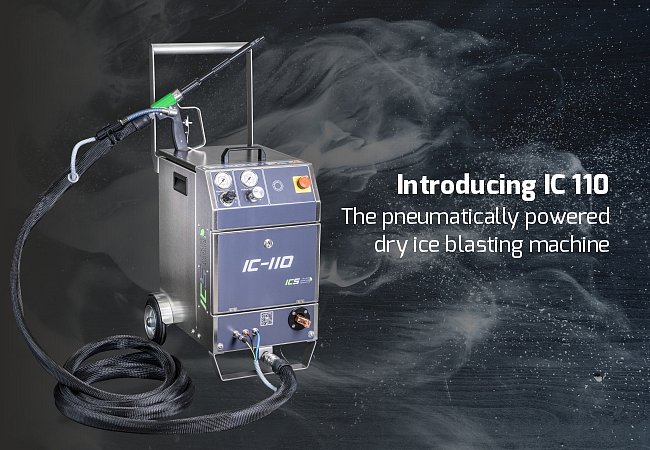

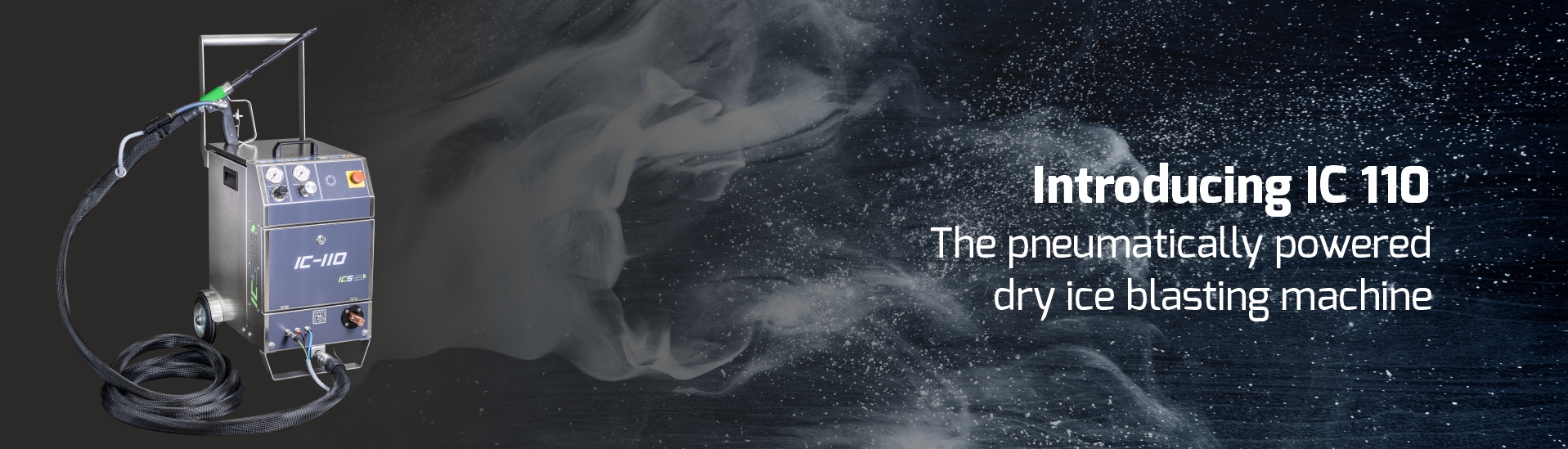

Máquina de limpieza versátil IC 110

La máquina de limpieza con hielo seco accionada neumáticamente con sistema de alimentación patentado.


Parámetros

Material

Acero inoxidable

Peso

39 kg

Capacidad

10 kg

Consumo de aire

1,0 m³/min – 4,5 m³/min


Characteristics

IC 110 is a medium ICS professional dry ice cleaning machine designed for pressures of 10 bar (145 PS) or less which delivers exceptional cleaning performance while maintaining costs of the cleaning process at a minimum level. The pneumatically operated single-hose dry ice blasting machine impresses with the following benefitis: very low air consumption, pellet regulation,  continuously variable blast pressure regulation, the robust machine is made entirely of stainless steel and distingguishes itself by the excellent manufacture and the powerful design. The design predetermines this machine for businesses’ in-house use for  tool, machinery or mould maintenance applications.

The machine is characterised by unique compressed air consumption, starting at 1,0 m3/min which makes the unit an unrivalled device in its class.

The ergonomically shaped blasting gun  enables blasting even in inaccessible places, it can be supplemented with a Flex Fit ball head, which significantly multiplies the flexibility and availability of the cleaning process. areas of operations and production processes. In combination with the Flex-Case 2 nozzle set, the IC 110 meets even the most demanding user expectations.

IC 110 is a cost effective dry ice blasting solution suitable for variety of applications.


3D view


Examples of use



For Download

Dimensions
Consumption
Weight
Length: 500 mm
Dry ice: 5-45 kg/h
Empty machine: 39 kg
Width: 337 mm
Compressed air: 1.0 - 4,5 m³/min. (17,5-159 CFM)

Height: 614 mm
(depending on the nozzle type)




Operating pressure
Material
Hopper capacity
Max 10 bar / 145 PSI
stainless steel
10 kg



Service supply connections
Noise Level:

Compressed air : DIN 3489 claw coupling
60 – 120 dB(A) depending on the blasting pressure, nozzle type &


cleaned surface
