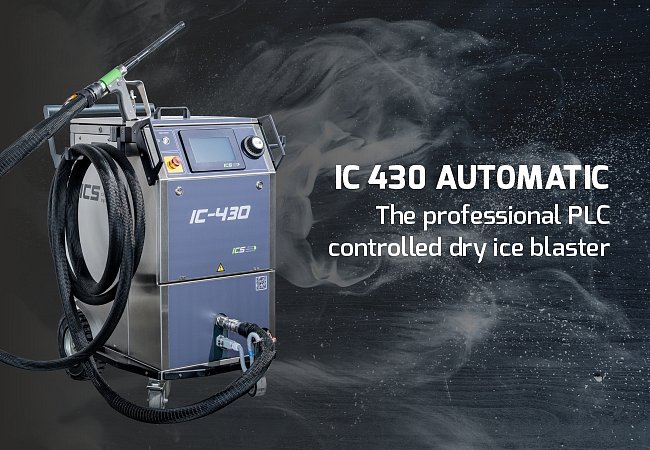

The professional PLC controlled dry ice blaster IC 430

IC 430 AUTOMATIC  is  the  highest  performing  dry ice blaster available, which allows user to clean faster and with greater power.

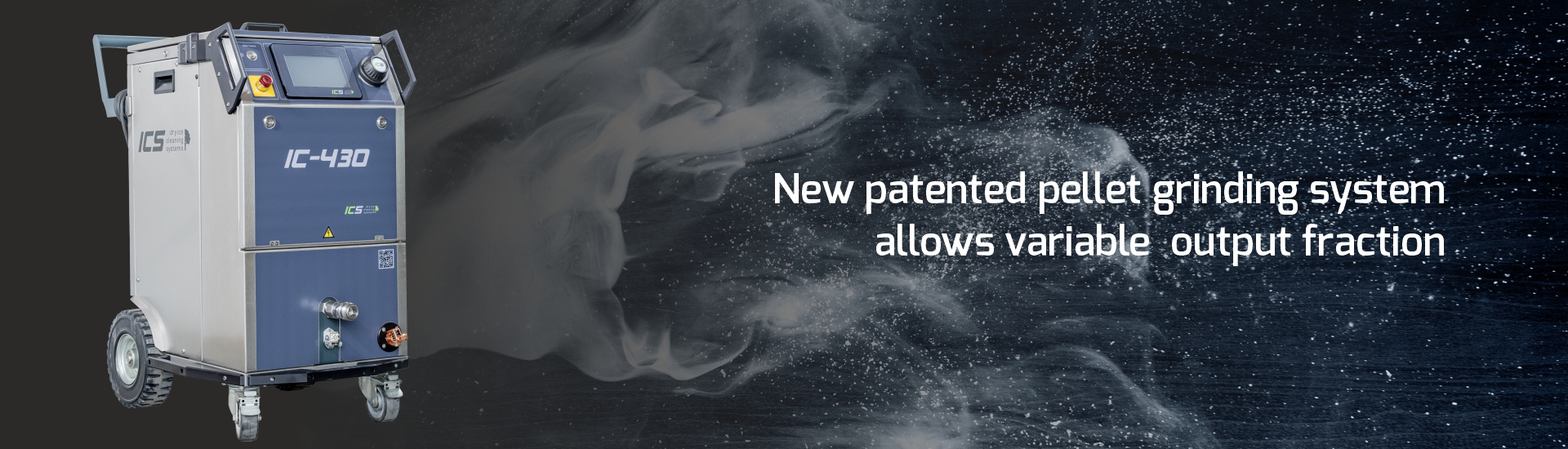

The new patented pellet grinding system allows variable output fraction, that can remove dirt from highly sensitive surfaces.


Parameters

Material

Stainless steel

Weight

125 kg

Hopper capacity

25 kg

Operating pressure

up to 16 bar


Characteristics


The professional PLC controlled dry ice blaster IC 430 AUTOMATIC  is designed to give the user complete control.  The new patented pellet grinding system allows variable output fraction, that can remove dirt from highly sensitive surfaces.

IC 430 AUTOMATIC  is  the  highest  performing  dry ice blaster available, which allows user to clean faster and with greater power.

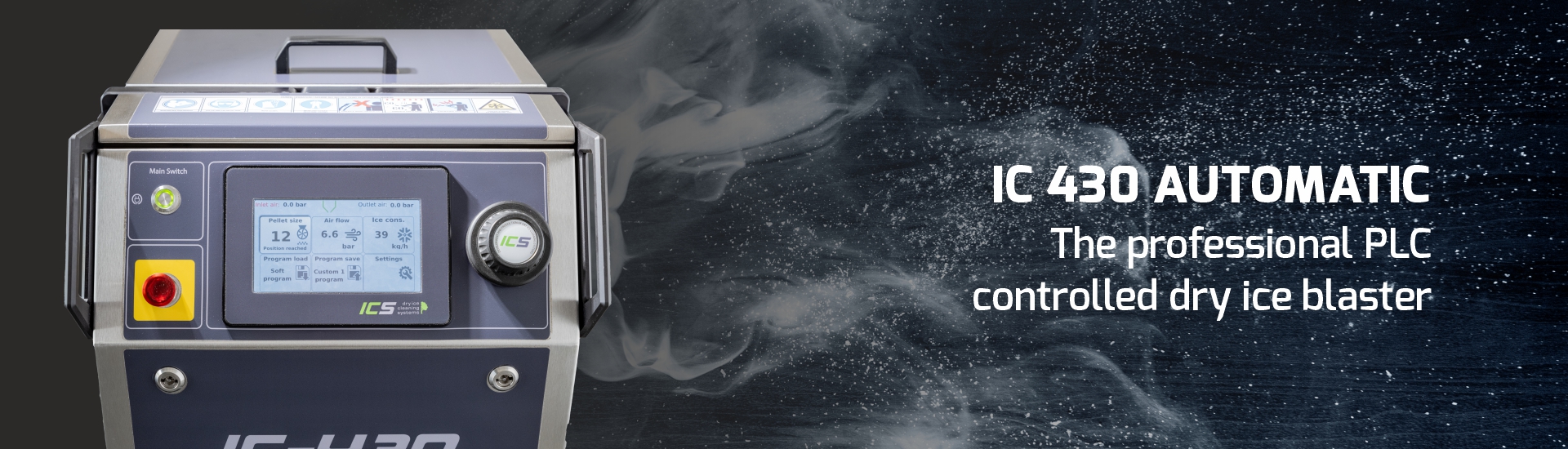

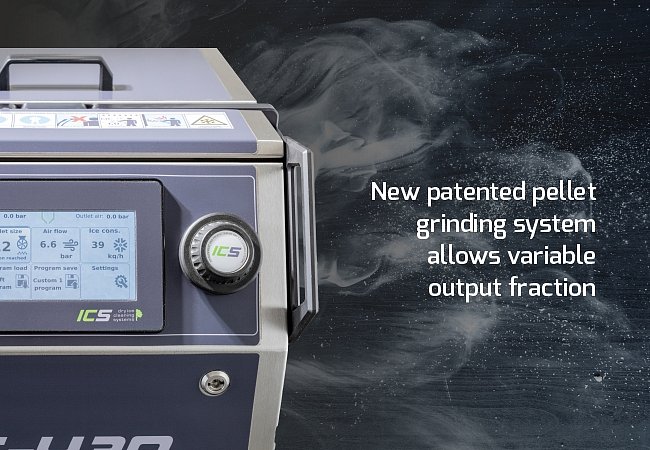

With a 7” LCD screen and digital controls, the IC 430 AUTOMATIC provides an intuitive display that allows the user to easily view and adjust blasting parameters and machine settings.

The high variability of the device settings in combination with a wide portfolio of nozzles, Patented High-Efficiency Flow Initiation Regulator, Ethernet connection, Measuring the amount of granulate in the hopper and Regulation of process parameters  through the new IG-40 gun provides a significant competitive advantage. IC 430 AUTOMATIC  is ready for connection to robotic workplaces or PLC systems.

Optimized design leads to consistent and pulse-free blast stream. The robust stainless steel frame  guarantee a long service life. The machine requires minimum maintenance costs even in the most difficult operating conditions. IC 430 AUTOMATIC is designed for mobility and maneuverability.

With its sophisticated design and outstanding technical parameters, you can set yourself apart from the competition with the Dry Ice Blaster IC 430 AUTOMATIC. This dry ice blasting machines are not only the most technologically  advanced  dry ice  blasters on  the  market,  they  are  also  the  easiest  to use.





Dimensions
Consumption
Hopper capacity
Length: 868 mm
Dry ice: 0-110 kg/h
25 kg (3 mm CO2 pellets)
Width: 540 mm
Compressed air: up tp 15 m³/min.

Height: 975
depending on the nozzle type




Operating pressure
Material
The possibility od changing the diameter
up to 16 bar
stainless steel
of the hose & distribution pipe


(3/4" and 1/2" versions).
Service supply connections:
Noise Level

Compressed air : DIN 3489 claw coupling
60 – 120 dB(A) depending on the blasting

Electrical: 100 – 240 V, 50 – 60 Hz, CEE
pressure, nozzle type

7/4, Type F
