IC 110 E, IC 110 E PLUS

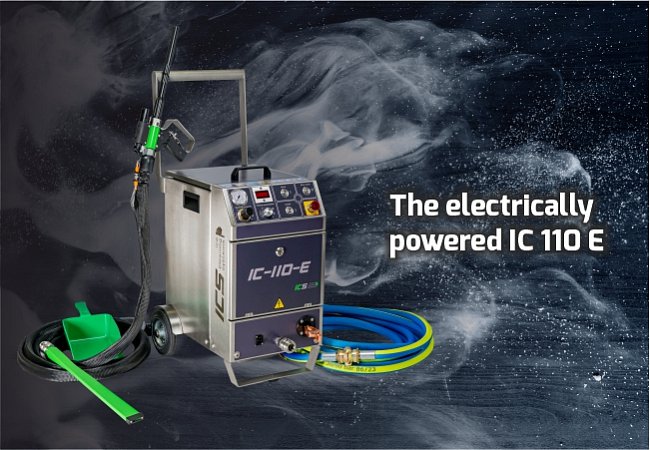

Versatile cleaning machine IC 110 E

An electrical one-hose dry ice blasting machine with very low compressed air demand.

Parameters

Material

Stainless steel

Weight

51 kg

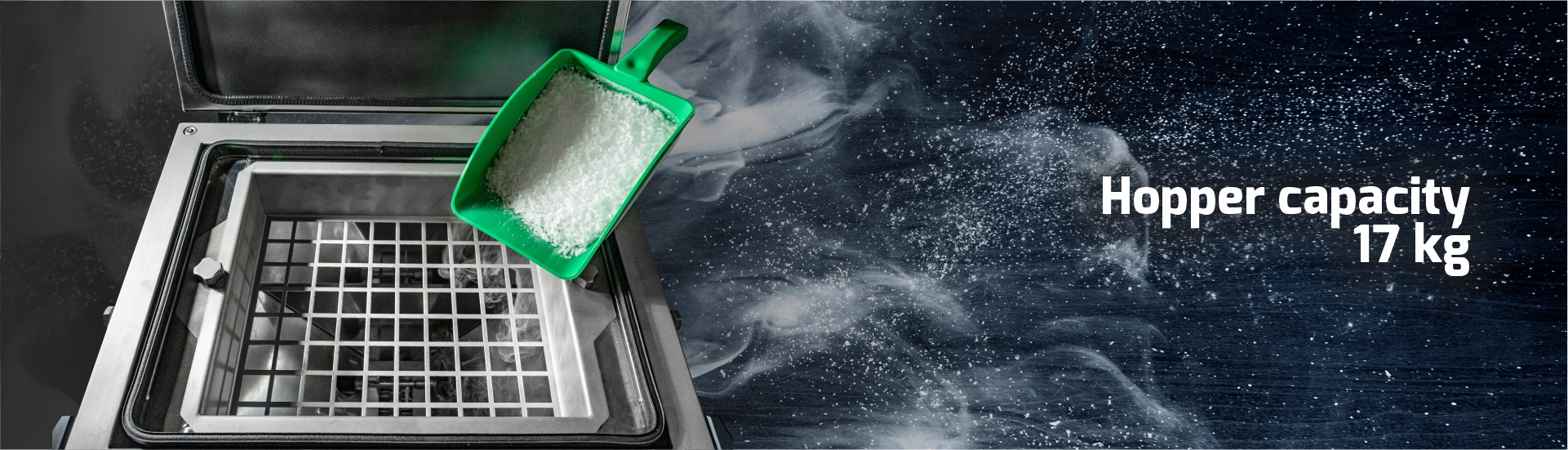

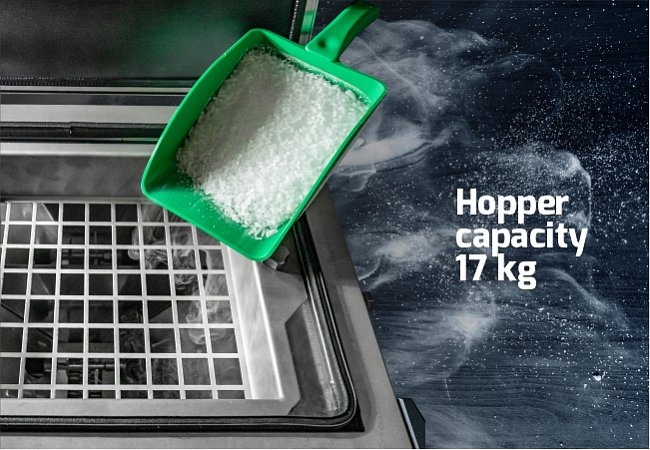

Hopper capacity

17 kg

Air consumption

0,5m³/min – 4,5 m³/min

Characteristics

IC 110 E is a medium ICS professional ice blaster designed for pressures of 10 bar (145 PS) or less which delivers exceptional cleaning performance while maintaining costs of the cleaning process at a minimum level.

The design predetermines this machine for businesses’ in-house use for tool, machinery or mould maintenance applications.

The machine is characterised by unique compressed air consumption, starting at 0.5 m3/min (17,5-159 CFM) which makes the unit an unrivalled device in its class.

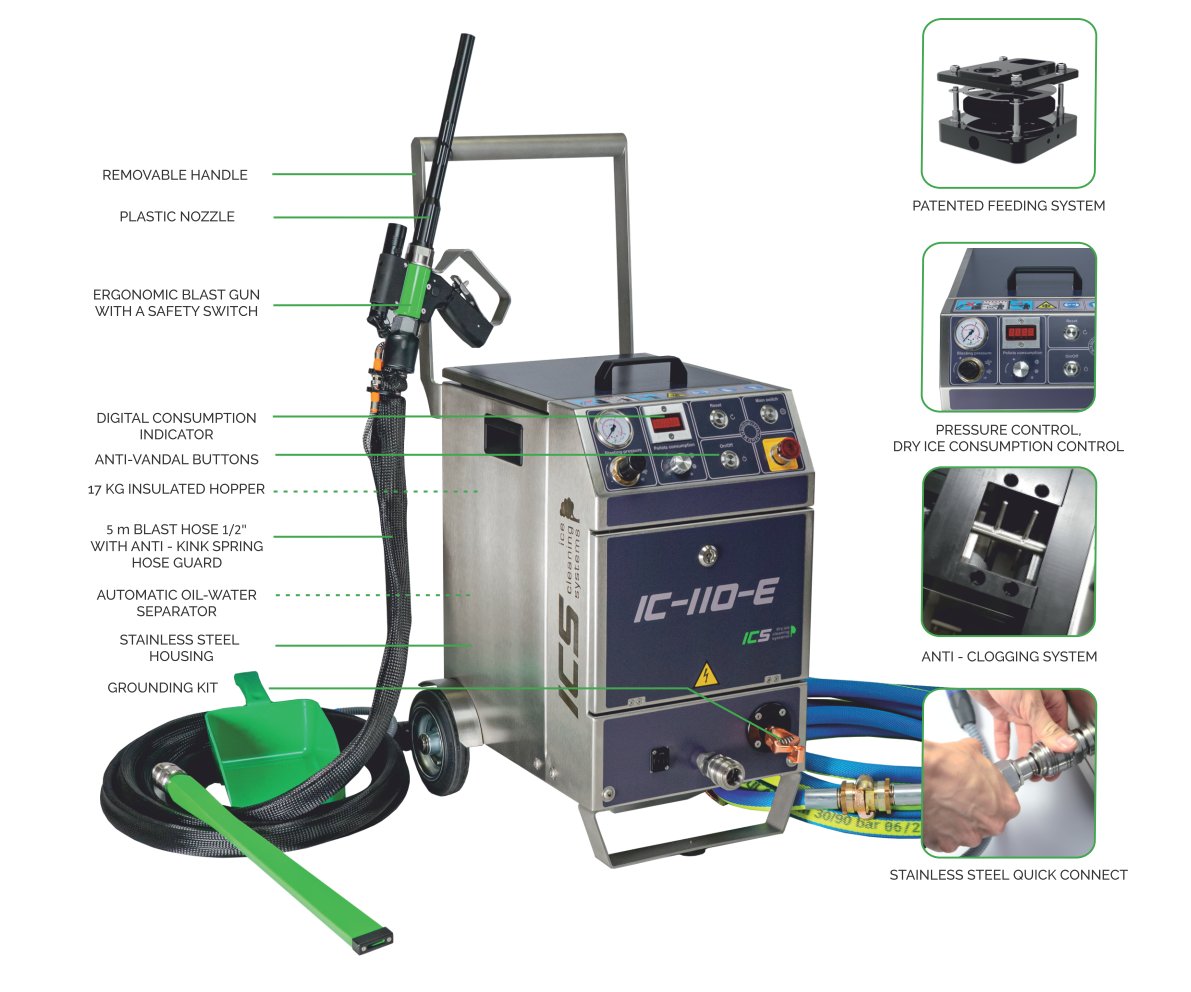

The ergonomically shaped blasting gun IG-10-E enables blasting even in inaccessible places, it can be supplemented with a Flex Fit ball head, which significantly multiplies the flexibility and availability of the cleaning process. areas of operations and production processes. In combination with the Flex-Case 2 nozzle set, the IC 110 E meets even the most demanding user expectations.

IC 110 E is a cost effective dry ice blasting solution suitable for variety of applications.

3D view

Examples of use

For Download

Dimensions	Consumption	Weight
Length: 597 mm	Dry ice: 0-60 kg/h	Empty machine: 51 kg
Width: 446 mm	Compressed air: 0,5 - 4,5 m³/min. (17,5-159 CFM)	(without the hose)
Height: 931 mm	(depending on the nozzle type)

Operating pressure	Material	Hopper capacity
Max 10 bar / 145 PSI	stainless steel	17 kg

Service supply connections	Noise Level:
Compressed air : DIN 3489 claw coupling	60 – 120 dB(A) depending on the blasting
Electrical: 100 – 240 V, 50 – 60 Hz, CEE 7/4	pressure, nozzle type and the cleaned surface
Type F
